5.5kw 50hz-60hz 3 Phase Solar Pump Inverter Solar Vfd Dc 900V AC Drive Pump
| Place of Origin | China |
|---|---|
| Brand Name | VEIKONG |
| Certification | CE |
| Model Number | VFD500-PV |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | the power less than 45kw use Carton, starting from 45kw use Wooden case |
| Delivery Time | depend on the order quantity |
| Payment Terms | L/C, T/T, Western Union |
| Supply Ability | 15000pcs per Month |
Product Details
| Product Name | 5.5kw Solar Pump Inverter | Voltage | 380v/220v |
|---|---|---|---|
| Output Type | Three Phase/single Phase | Type | DC/AC Inverters |
| Efficiency | More Than 99% | Warranty | 18 Monthes |
| High Light | 50hz 3 Phase Solar Pump Inverter,3 Phase Solar Pump Inverter 900V,50hz solar vfd pump drive |
||
Product Description
5.5KW 50hz to 60hz solar pump inverter solar vfd dc 900V AC drive pump
Electrical Specifications and Power degree
|
|
220V |
380V |
|
Max input DC voltage |
450V |
810V |
|
DC voltage range |
150~450VDC |
300~810VDC |
|
Normal working DC voltage |
260V-400V |
400V-650V |
|
Recommended input mppt voltage |
330V |
550V |
|
MPPT efficiency |
>99% |
|
|
Rated output voltage |
1/3-phase 220VAC |
3-phase 380-480VAC |
|
Output frequency range |
50/60Hz |
|
|
Max efficiency of the machine |
99% |
|
|
Ambient temperature range |
-10 °C~50 °C, derating if the temperature is above 40 °C |
|
|
Cooling method |
Air cooling |
|
|
Protection degree |
IP20/IP21 |
|
|
Altitude |
Below 1000m; above 1% for every additional 100m. |
|
|
Standard |
CE/ROHS |
|
Product Details and Features:
1. Support single phase/three phase 220V, and three phase 380V solar water pump inverter, power from 0.75KW to 160KW.
2. Simply connect the photovoltaic panel to the solar water pump inverter, and the PV pump c be automatically started after power-on.
3. It has protection functions such as PV over-voltage protection, over-temperature automatic protect, etc., which can effectively extend the life of the product.
4. Ensure solar power tracking efficiency can reach 99%.
5. All series of products can realize automatic switching of PV DC input and grid AC input, which can meet 24 hours of no care work.
6. Supports IP20 and IP65 grade cabinet solutions.
7. LCD display, GPRS module, Output reactor Accessories.
Accessories:
1. GPRS (support 2g/3g/4g internet)
It supplies water volume monitoring and operation of inverter from anywhere at anytim
It’s convenient to visit real time and historical data via web or Android APP anytime and anywhere.
This easy-to-use platform makes monitoring of solar pump systems simple and convenient,
far reducing operate time and monitoring costs as well.

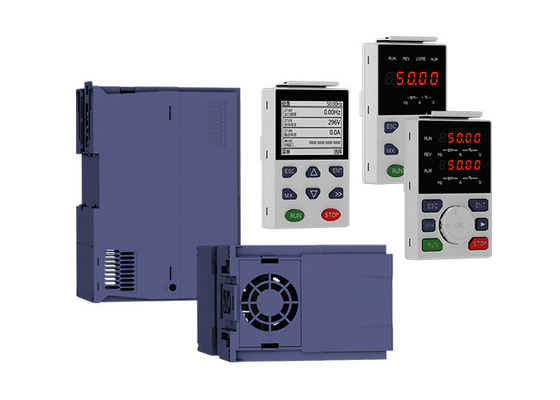

2. LCD keypad
Standard inverter are with LED keypad,LCD keypad is optional.
LCD keypad can monitor 4 parameters at the same time. LED keypad show one parameter only.
LCD keypad with detailed parameter explain,no need use user manual ,more user friendly.
LCD keypad with copy and update and download function.widely used for government projects and big farms.

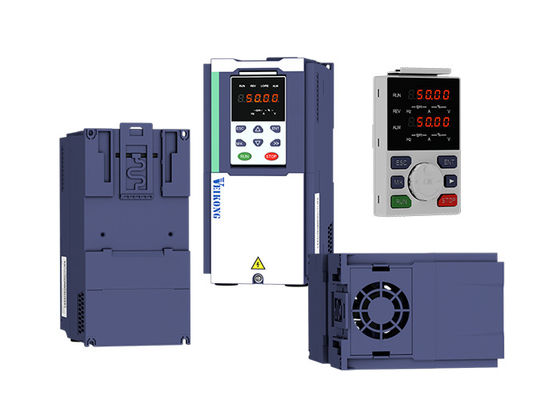

VFD500-PV 5.5KW 380V inverter picture:
Package:
When power is less than 45kw, we use carton package:
When power is more than 45kw, we use wood case package:
FAQ
1. Can you send me a sample?
It's my honor to send a sample to you,but you need to pay the sample fee and shipping cost
2. What's about your delivery time?
Some vfd we have stock, after we receive payment,we will send you within two days.
3. How to pay it?
You can pay it to Alibaba,Paypal, western union, bank to bank.
4. How about your warrantly time?
Our warrantly time is 18months, if the goods or accessories can't work,we send free spare parts to you.
5. Payment Terms?
100% T/T before shipment for stock supply products; 30% as advance and balance before shipment for production and special design order.
6. Is our company accept customized and OEM order ?
Yes. Our factory can accept OEM, it can be discussed
